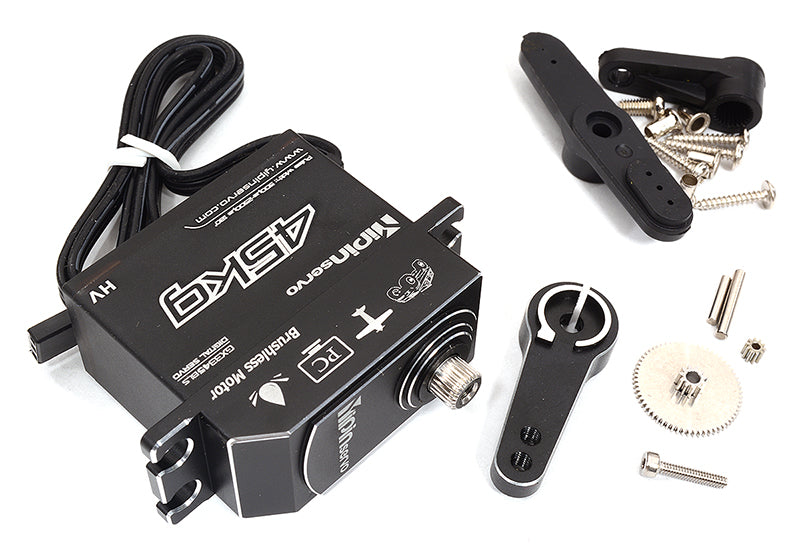

GX3345BLS MG Brushless HV Servo 8.4V 47kg 0.07s for 1/10 & 1/8 Scale Off-Road
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
Overview
OVERVIEW
Give your 1/10 or 1/8 Scale RTR Off-Road vehicle a noticeable upgrade with the GX3345BLS MG Brushless HV Servo. This servo features 47kg of torque (@8.4VDC) in a standard 40mm x 20mm x 37mm size that is compatible with most RC vehicles. The servo features an aluminum case and weighs only 77g. The GX3345BLS MG Brushless HV Servo is sold individually and is available in black only.
Ball Bearings: 2-pcs.
Dimensions: 40x20x38mm
Weight: 77g
Dead Band: 2μs
Pulse Width: 500μs-2500μs =180°
Working Frequency: 1520μs/330hz
Operating Speed (6.0V): 0.1s/60°
Operating Speed (7.4V): 0.08s/60°
Operating Speed (8.4V): 0.07s/60°
Stall Torque (6.0V): 40kg-cm
Stall Torque (7.4V): 45kg-cm
Stall Torque (8.4V): 47kg-cm
Item# C32844
Barcode: 91789045114
Fitment and tips
Fits: 1/10 & 1/8 Scale Off-Road
Tip: Verify fitment with your specific model and existing hop-ups before installation.
