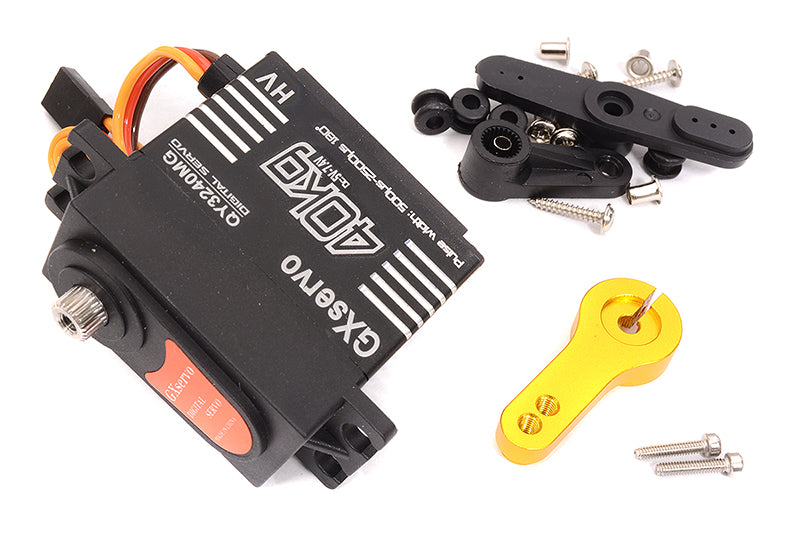

GX-QY3240MG Digital Servo 40kg 0.18s for 1/10 Crawler & 1/8 Scale
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
Overview
Pulse Width: 500μs-2500μs =180°
Operating Speed (6V): 0.2s/60°
Operating Speed (7.4V): 0.18s/60°
Stall Torque(6.0V): 36kg-cm
Stall Torque(7.4V): 40kg-cm
Operating Voltage: 6.0V-7.4V
Gear Type: copper
Motor: Core motor
Dead band: 3μs
Ball Bearing: 2pcs
Working Frequency: 1520μs/330hz
Shell Material: PA66
Control System: Customizable(PWM,RS485 ,TTL,CAN)
Dimensions: 40x20x40.5mm
Weight: 75g
Item# C32840 Barcode: 91789045110
Fitment and tips
Tip: Verify connector type/polarity and secure wiring away from moving parts.
