V2 Edition i10B 4X4 Brushless RTR 1/10 Scale Performance Buggy by INTEGY
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
Overview
OVERVIEW

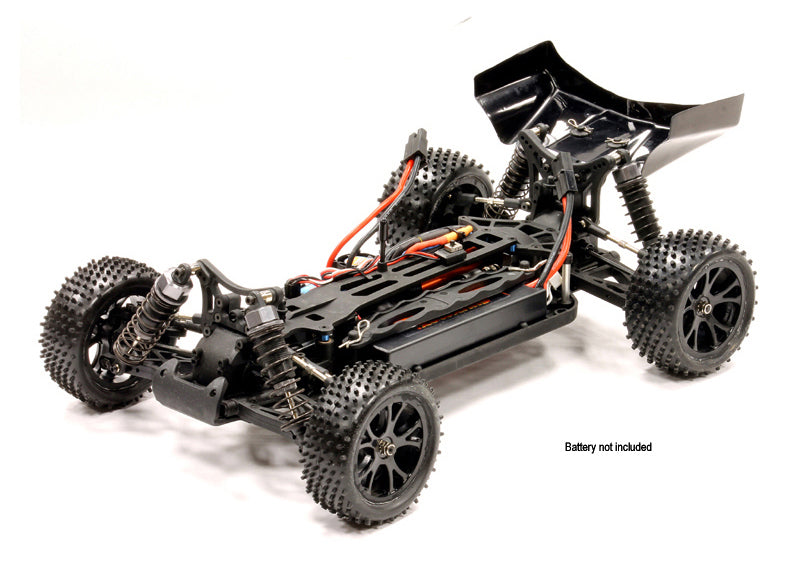

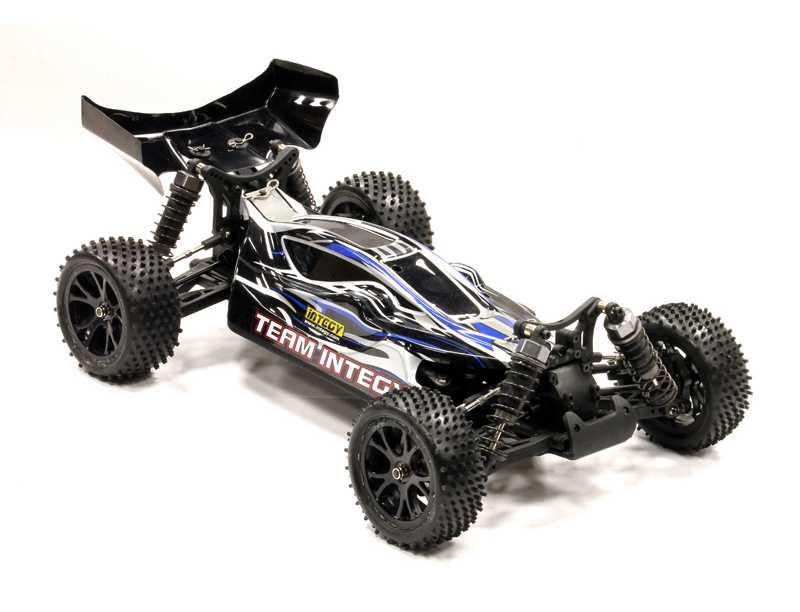

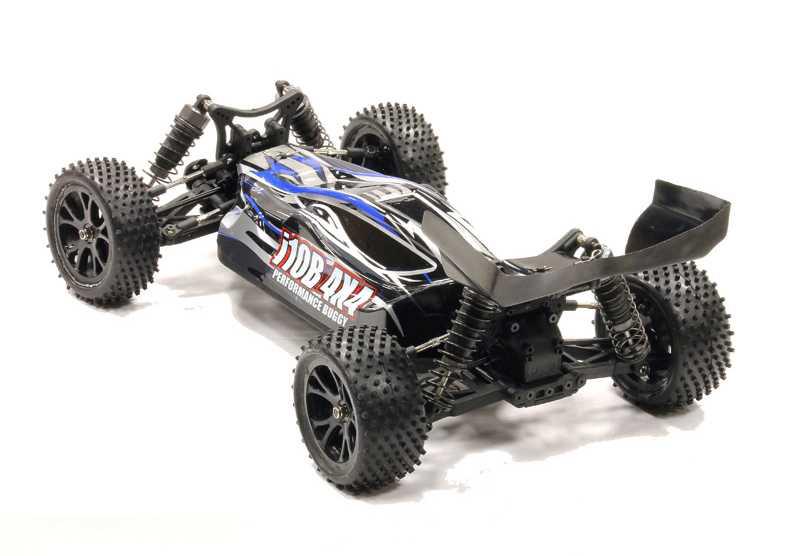

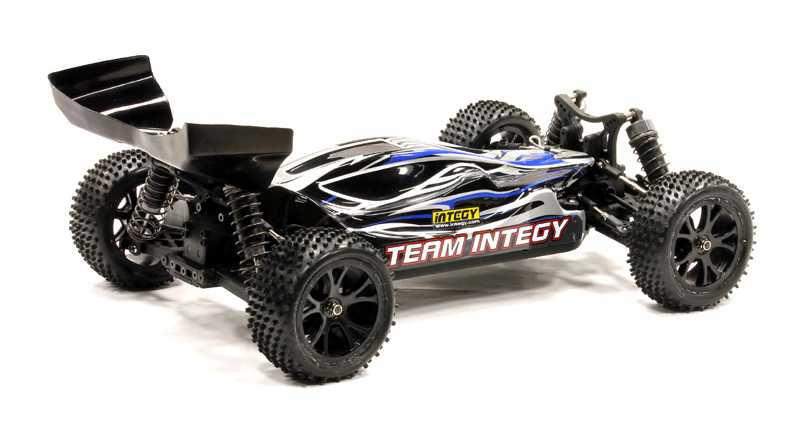

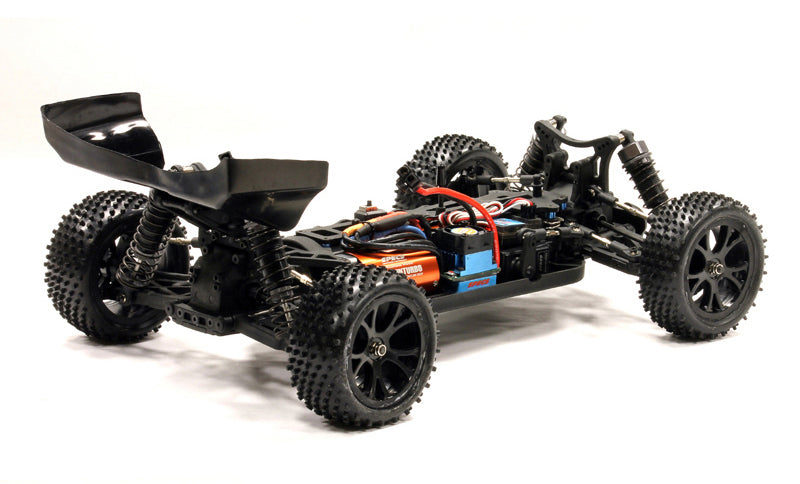

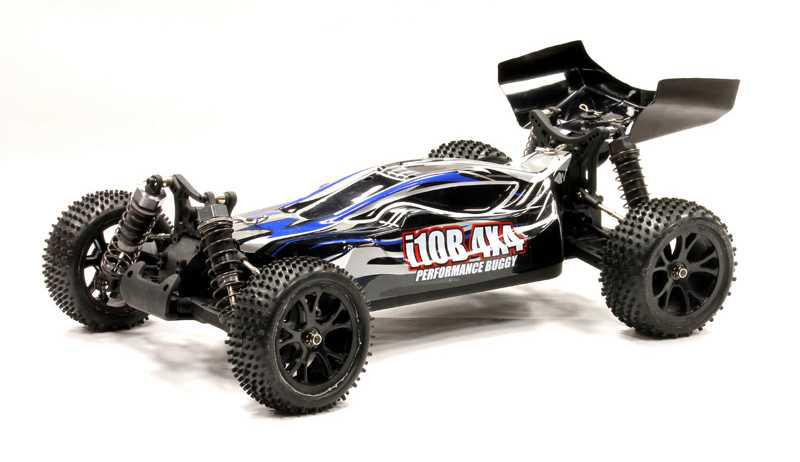

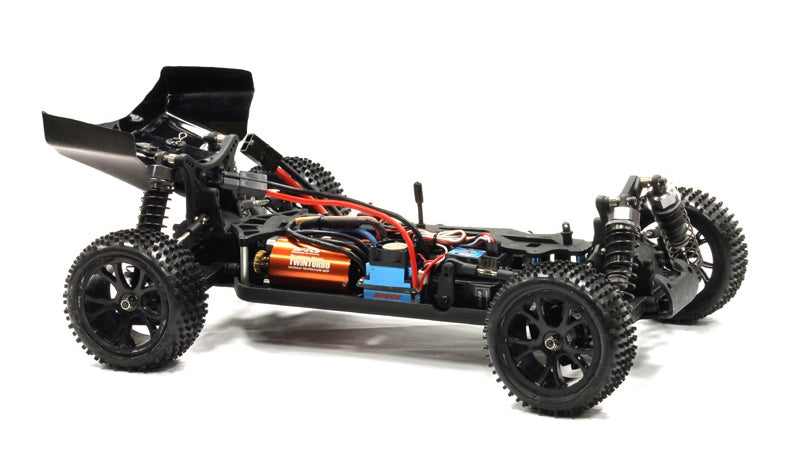

Jump into the world of 4wd buggy racing with the i10B01 1/10-scale performance buggy. Designed for the sportsman-level driver, we offer this complete package that is brushless-powered for more performance and excitement. Starting with a durable, 3-piece molded chassis with replaceable front bulkhead mount and top deck, the i10B features a center drive shaft with adjustable slipper clutch as standard equipment. Two metal-gear differentials handle the abuse of off-road, and send power through long-reach dogbones to the four wheels. Pin-type tires are pre-mounted and pre-glued from the factory, ready to roll. A full set of ball bearings throughout the drivetrain are standard equipment. Long suspension arms and upper adjustable turnbuckles pair with aluminum bodied oil-filled shocks with threaded preload adjustment and adjustable mounting angles to dampen the bumps and jumps. There are also turnbuckles on the dual bellcrank steering system for toe adjustability.
Hex head countersunk hardware is used throughout. The sleek 4wd buggy body with wing is already precut and prefinished. Upgraded power comes from a pre-installed SPECS S100 RTR Brushless ESC (820w, 2S-3S, sensorless, built-in LiPo cut-off) and SPECS brushless Twin-Turbo motor (10T, 3000Kv sensorless). The pre-installed radio system is also upgraded to a 2.4gHz 3-channel FS-GT3B pistol-grip with digital LCD display, 10-model memory, drop-down steering wheel, and ha matching aluminum cased performance steering servo. To get driving you will need a 2S-3S battery pack, charger, and 8 AA-size batteries for the transmitter.
CHASSIS
Molded double-deck design w/spine and chassis bracing
Molded battery stay
Separate front bulkhead mount
Low profile molded front bumper
All hex hardware
DRIVETRAIN
4WD Center drive shaft
Front/rear gear differentials
Adjustable slipper clutch
Adjustable motor mount
Front/rear steel dogbones and axles
Full ball bearings in drivetrain
SUSPENSION
Long-reach lower suspension arms
Turnbuckle adjustable upper links
Anodized aluminum oil-filled dampers
Threaded damper bodies
Molded front/rear lower suspension blocks
Adjustable camber
Adjustable caster
Adjustable shock angle
Adjustable upper link mounting points
Adjustable rear hub mounting point
STEERING
Dual bellcrank design
Aluminum steering posts
Adjustable front toe in/out
MORE
Pre-installed 2.4gHz FS-GT3B 3-channel pistol grip radio system
Pre-installed SPECS S100 RTR 820w brushless ESC
Pre-installed SPECS Twin-Turbo 3000Kv sensorless brushless motor w/pinion gear
Pre-installed 6003 steering servo
Pre-mounted and pre-glued pin-type tires
Removable Lexan rear wing
SPECIFICATIONS
length: 16.3-inches (415mm)
Width: 10.03-inches (255mm)
Height: 5.59-inches (142mm)
Wheelbase: 10.82-inches (275mm)
Weight (chassis): 3 lbs. 10.2-oz. (1650g)
To get up and running you will need:
2S-3S LiPo battery pack
LiPo charger
8x AA-size batteries for the transmitter
Item# i10B01-820W
Barcode: 91789008576
Fitment and tips
Tip: Test-fit before final tightening and re-check after first run.
