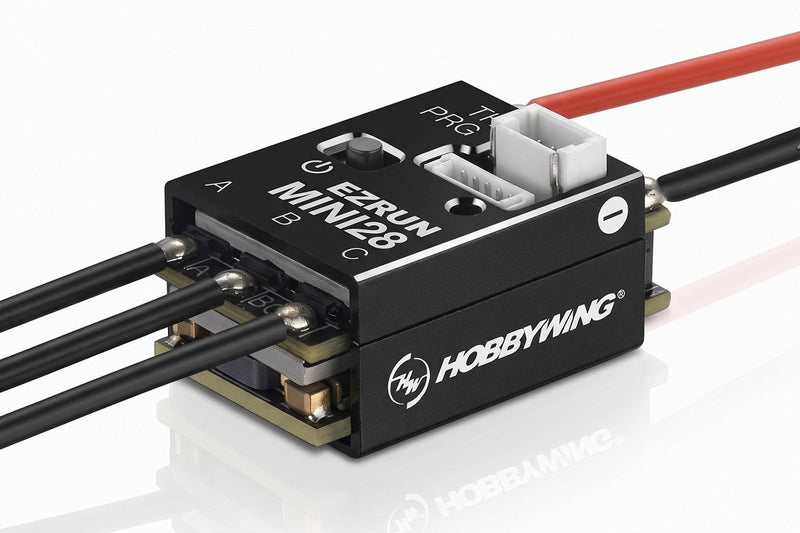

Hobbywing EZRUN Mini28 30A/80A for 1/28-1/27 Scale
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
Overview
The Hobbywing EZRun MINI28 1/28th Scale Sensored Brushless ESC incorporates revolutionary features in a 1/28th scale package. Built for 1/28th scale racing this powerful ESC is packed with the features needed to provide a competitive advantage on the racetrack. At only 22mm long and 14mm wide this ESC will fit in most 1/28 vehicles with ease. To achieve this small size a large aluminum heat sink has been integrated helping to lower temperatures for consistent performance. Even though this ESC is small there are still 26 different adjustable parameters to choose from. With the ability to access these options from a smartphone using the optional Hobbywing OTA module (HWA30850400 - Sold Separately) makes adjustments easier than ever. Packed with features and performance this MINI28 ESC from Hobbywing is an excellent choice for your next 1/28 scale build.
Features:
- Built specifically for 1/28 scale racing
- Small and lightweight design
- Large integrated heat sink
- Built in dual app mode
- High Voltage adjustable BEC
- OTA Wireless compatible
Specifications
| Product Title | EZRUN Mini28 ESC |
| Part number | 30101300 |
| Technology | Brushless Sensored |
| Waterproof | No |
| Cont./Peak Current | 30A/80A |
| Input Voltage | 2S Lipo |
| BEC Output | 6V/7.4V @Max 3.5A |
| Wires & Connectors | Input Wires: 20AWG-55mm * Output Wires: 22AWG-80mm * |
| Size & Weight | 22.7x14.2x11.8mm | 5g (without wires) |
| Applications | Motor: 1626 Size Motors Vehicle: 1/28th&1/27th |
| ESC Programming | LCD G2 Program Box OTA Programmer Throttle Wire |
| Firmware Upgrade | Supported |
| Manual download | |
| Product Brochure |
* All the wire length above is the original length not the length you see from the outside.
