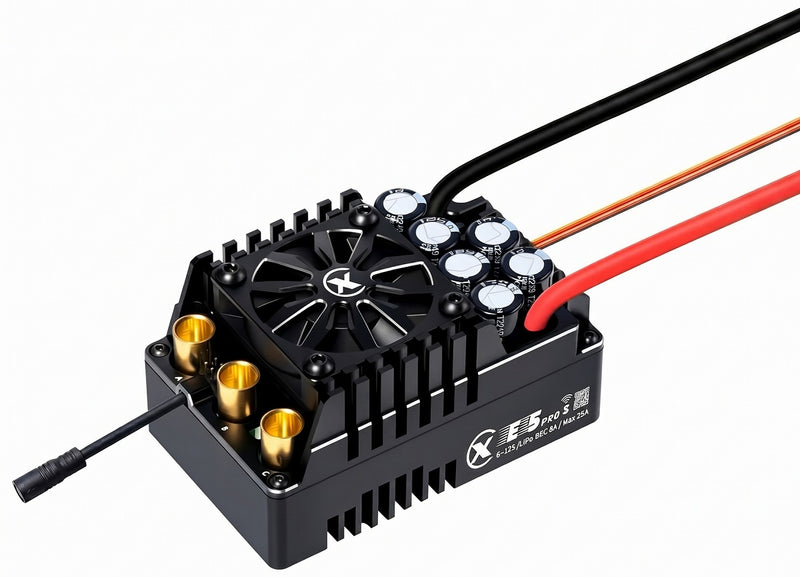

E5 Pro Brushless ESC 250A 6S-12S w/ Built-in Bluetooth by XC Technology
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
OVERVIEW
The versatile XC-ESC E5Pro is a high performance 250A sensored brushless ESC that is designed to work with a 6-12S LiPo battery packs. The built-in BEC can provide a steady 8A (25A Max) for your outboard electronics, and the massive 8mm bullet power plugs can accommodate up to 8AWG wire. The ESC with wires weighs 470g, is dustproof and IP67 waterproof, and can function in extreme temperatures between -13 to 140°F (-25 to 60°C). The E6Pro has a ton of features, including:
- Built-in Bluetooth Use with the XC-Link mobile app for instant ESC management, ESC parameter setting, static data log viewing and real-time data observation, with no extra programming boxes ordongles required.
- BEC adjustable 6V / 7.4V / 8.4V, 25A peak, delivers steady power to electronics for quick response and precise control for sorts of HV servos.
- Smart Cooling System The included Intelligent fan adjusts operation based on ESC temperature for efficient cooling. The 50mm fan stays off at low temperature, only starts when reaches set value.
- Full ESC Protection Built-in safety from low voltage, over voltage, throttle loss, abnormal braking, excess temperature, and anti-spark.
- Cycle-by-cycle Current Control Protects motor and drivetrain from excessive pulse current damage.
- Active Freewheeling To reduce times of components spend generating heat, remaining your gear "cool" even at top performance without overheating.
- Built-in Turbo Timing Functions Support for X.BUS protocol, allowing real-time control of ESC and reading of operation data
- Real-Time Data Monitoring View operational logs live or access static data using the mobile app.
- Compact Size ESC measurements LxWxH (93.8 x 59 x 53.6mm)
Item# C34338 Barcode: 91789048763
