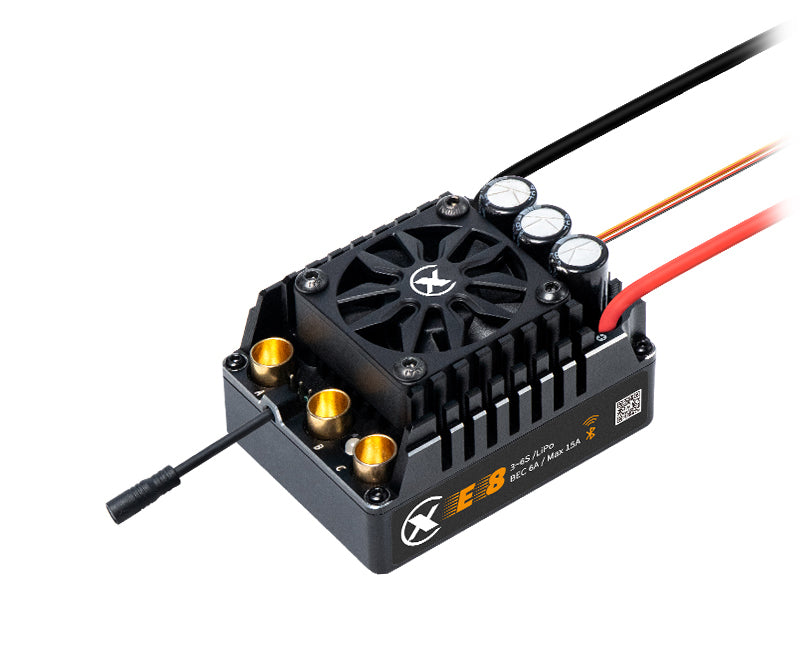

E8 Brushless ESC 160A 3S-6S w/ Built-in Bluetooth by XC Technology
Brand and model names are used only to identify compatibility. Integy aftermarket parts are not affiliated with, sponsored by, or endorsed by the referenced vehicle brands unless stated otherwise.
Overview
OVERVIEW
The versatile XC-ESC E8 is a high performance 160A sensored brushless ESC that is designed to work with a 3-6S LiPo battery packs. The built-in BEC can provide a steady 6A (15A Max) for your outboard electronics, and the 6.5mm bullet power plugs can accommodate up to 10AWG wire. The ESC with wires weighs just 5.82 ounces (165g), is IP67 waterproof, and can function in extreme temperatures between -13 to 140°F (-25 to 60°C). The E8 has a ton of features, including:
• Built-in Bluetooth
Use with the mobile App for ESC management, ESC parameter setting, static data log viewing and real-time data observation
• Intelligent Heat Dissipation
The included cooling fan stays off at low temperatures, and will only start when the ESC reaches a set temperature.
• Full ESC Protection
Built-in safety from low voltage, over voltage, throttle loss, abnormal braking, and excess temperature
• Built-in Turbo Timing Functions
Support for X.BUS protocol, allowing real-time control of ESC and reading of operation data
• Compact Size
ESC measurements: 2.35” x 1.89” x 1.41” LxWxH (59.80 x 48.20 x 35.90mm)
E8 instruction manual can be found HERE.
Item# C33683
Barcode: 91789050
Fitment and tips
Fits: Please match the item name and photos to your model and application.
Tip: Confirm part number C33682 matches your setup before ordering.
Tip: Test-fit before final tightening and use threadlock on metal-to-metal hardware when applicable.
Tip: If you are combining multiple aftermarket parts, minor adjustments may be required.
