Billet Machined 6X6 7T GL High-Mobility Off-Road Truck 1/10 Size ARTR
OVERVIEW
Only one word can describe our newest limited edition chassis - it's a beast! Realistically modelled after the historical MAN Kat1 series of 7-ton military-spec all-terrain trucks developed for the German Army, our 7T-GL High Mobility 6X6 Truck is a 1/10-scale machine like nothing we've ever released before! Weighing in at over 11 pounds, the build of this machine all starts with the backbone - a pre-assembled box-type ladder ladder frame made from steel and alloy components. From here, you'll find three Billet machined alloy axles with metal gear differentials (spool for the front axle), full ball bearings, full alloy high-ratio center transmission, full-time six-wheel drive system with HD universal drive shafts, and a multi-link crawler-type suspension with separate alloy shocks and springs.
Topping the chassis is a full aluminum, scale detailed, multi-piece metal cab and bed (assembly required) with features such as front and rear LED lights, standard front electric winch, adjustable side mirrors, front skid plate, actual working rear tailgate, clear Lexan windows, full-sized spare wheel and tire, paintable interior set and rear wheel fenders. A matching set of six (seven including the spare) of our true beadlock 1.9-class alloy beadlock wheels and pre-mounted rock crawler tires round out the look. we also include a set of alloy tools for assembly (see NOTE below).

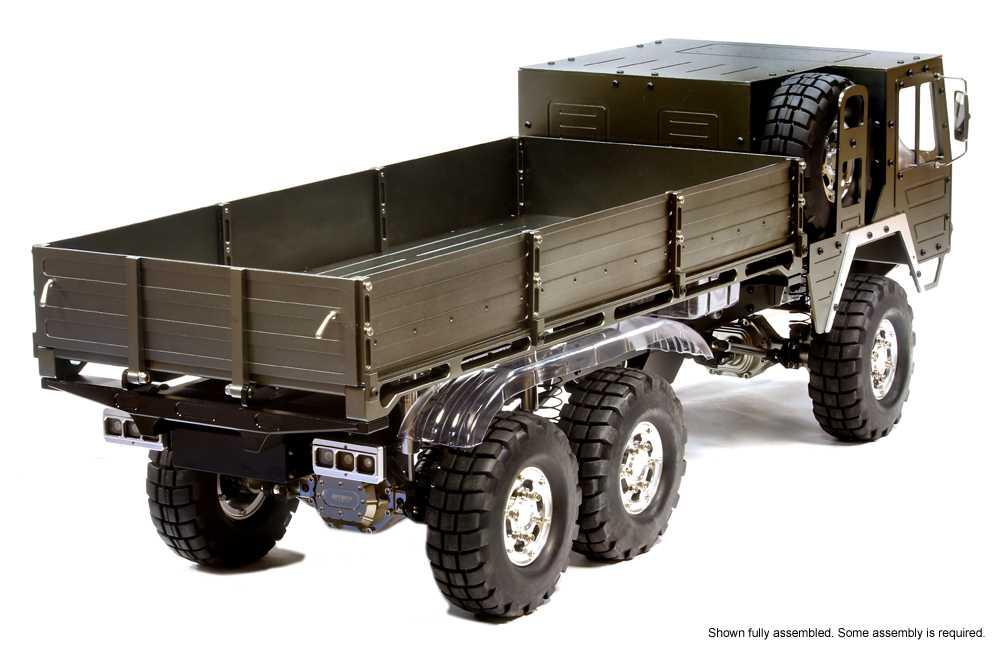

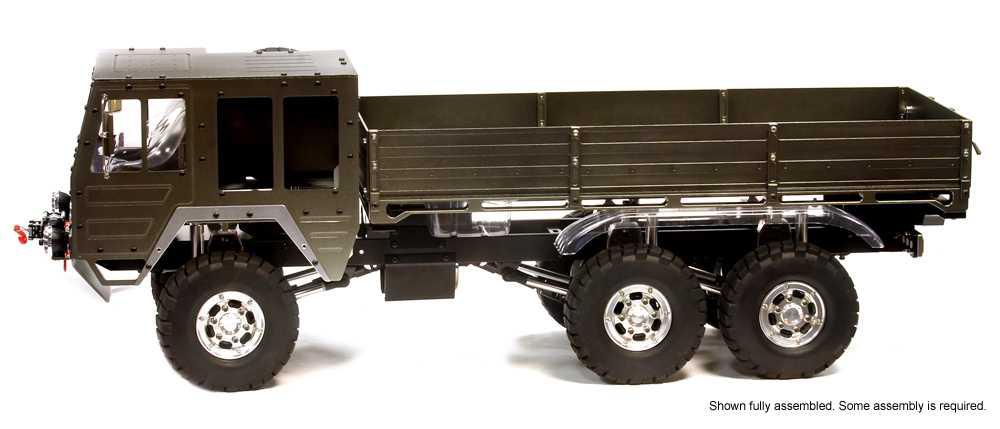

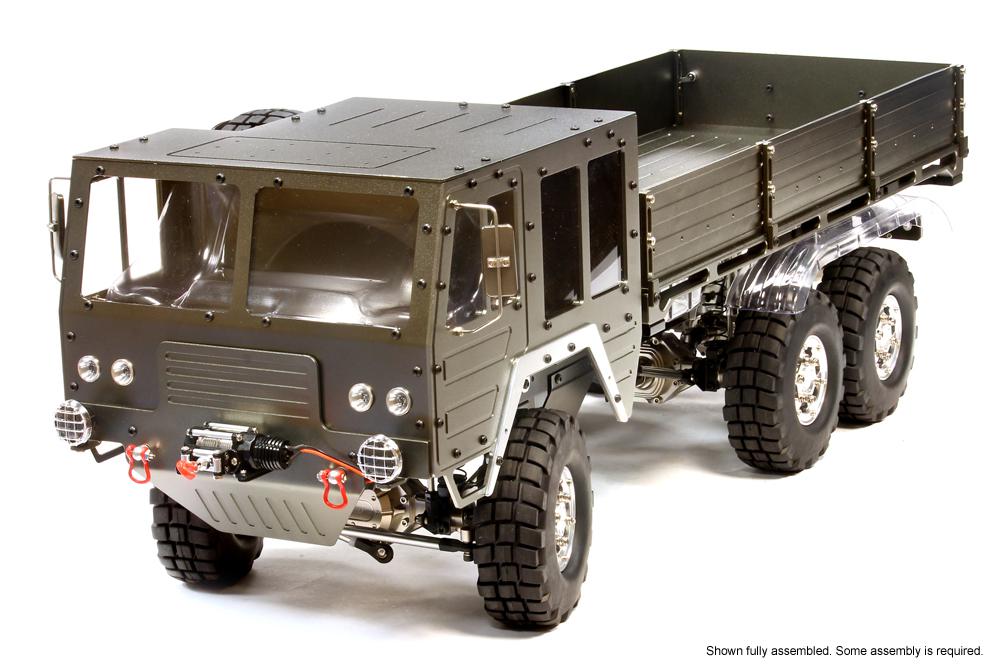

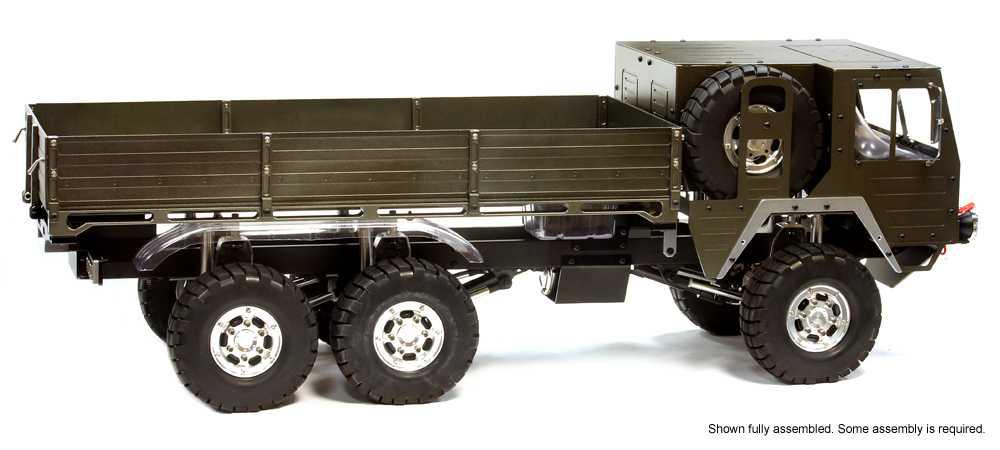

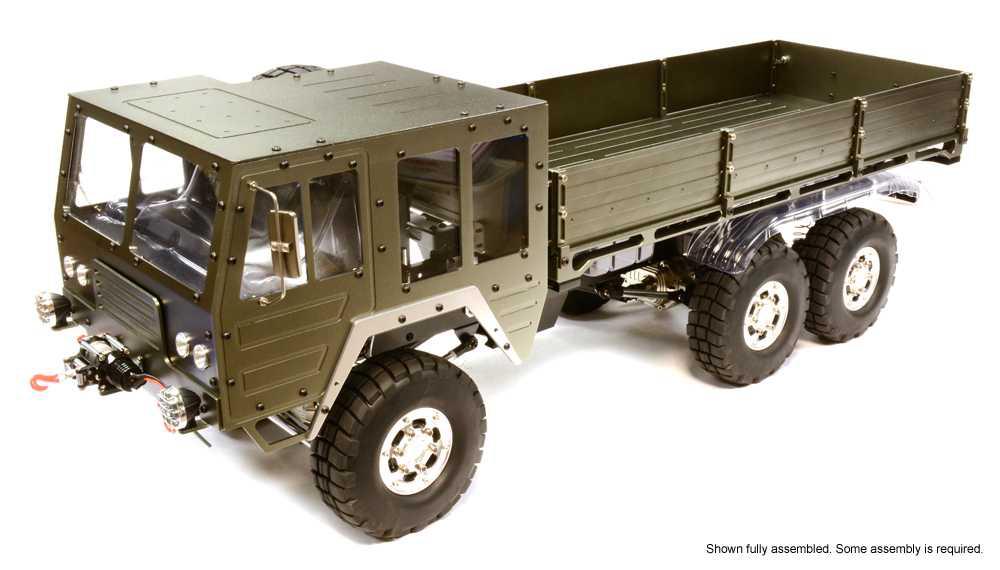

NOTE: PHOTOS ABOVE SHOW COMPLETELY ASSEMBLED VEHICLE. Out of the box, the lower chassis (frame, axles, suspension, etc.) arrives 90% assembled; Upper cab, and trailer bed arrive unassembled and requires assembly. Interior and rear fenders are Lexan, and must be painted. Reference photos included; and use liquid threadlock when required, as some components are assembled for packaging purposes only.
BODY/CHASSIS
Anodized alloy full metal front cab w/interior and Lexan windows
Anodized alloy full metal rear cargo bed w/working tailgate
Extended alloy/steel ladder frame with alloy bracing
Anodized alloy/steel body and cab mounts
Anodized alloy rear bumper w/D-rings
Anodized alloy adjustable side step rails
Anodized alloy transmission skid plate
DRIVETRAIN

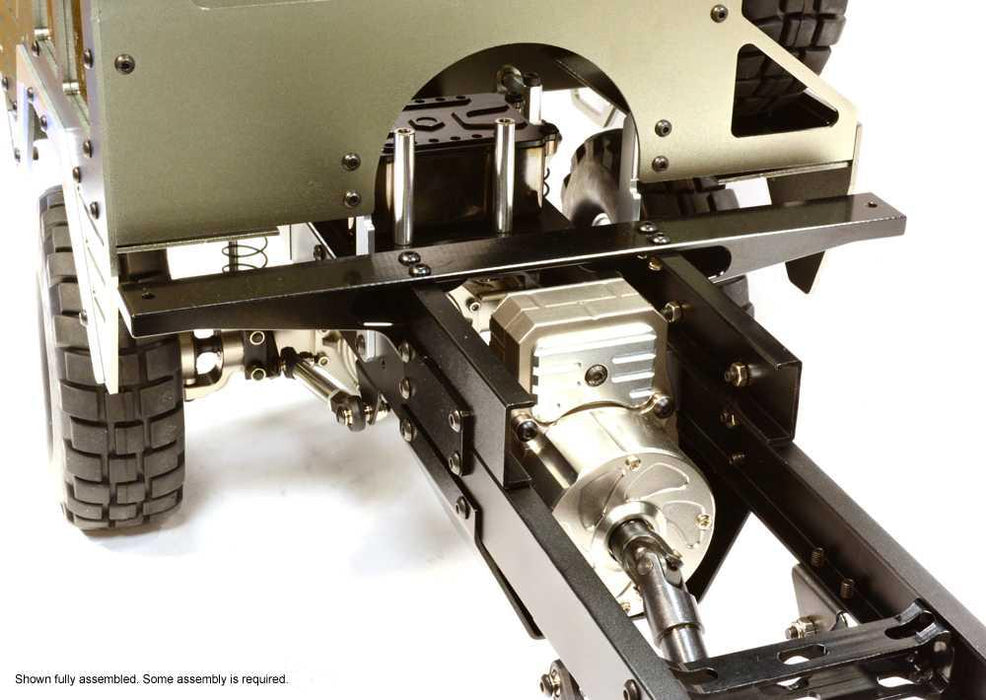

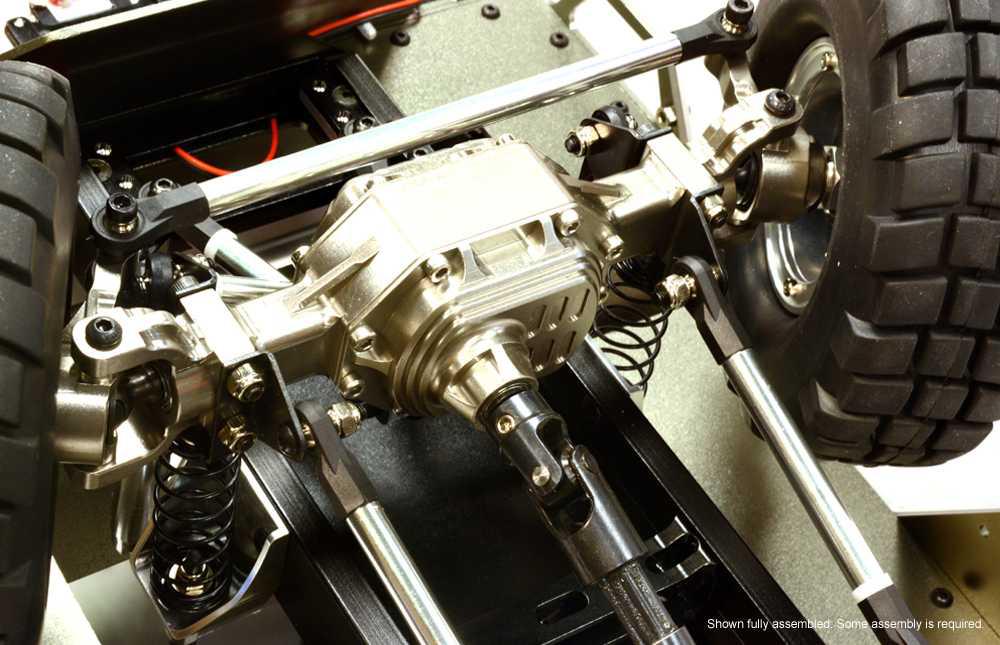

Anodized alloy transmission case with metal internals
Adjustable anodized alloy heatsink motor mount
Front locked axle
Center and Rear gear differentials
Full ball bearing set
7x 1.9 anodized alloy beadlock wheels
7x 1.9 scale rock crawling tires

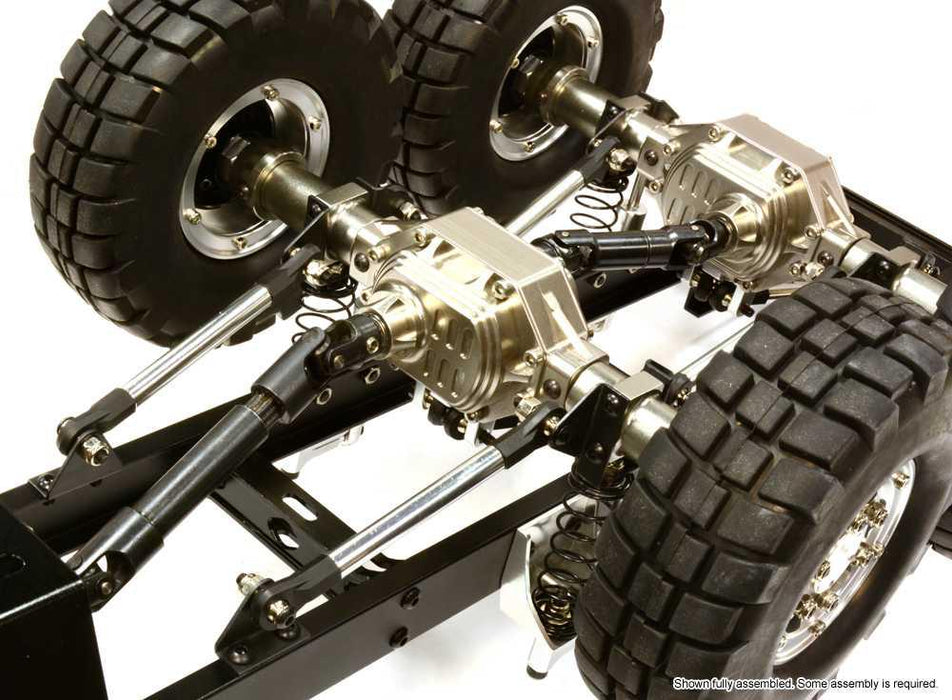

Anodized alloy straight axle housings
HD drive shafts
Anodized alloy hub carriers
Anodized alloy knuckles
Anodized alloy axle lockouts
SUSPENSION

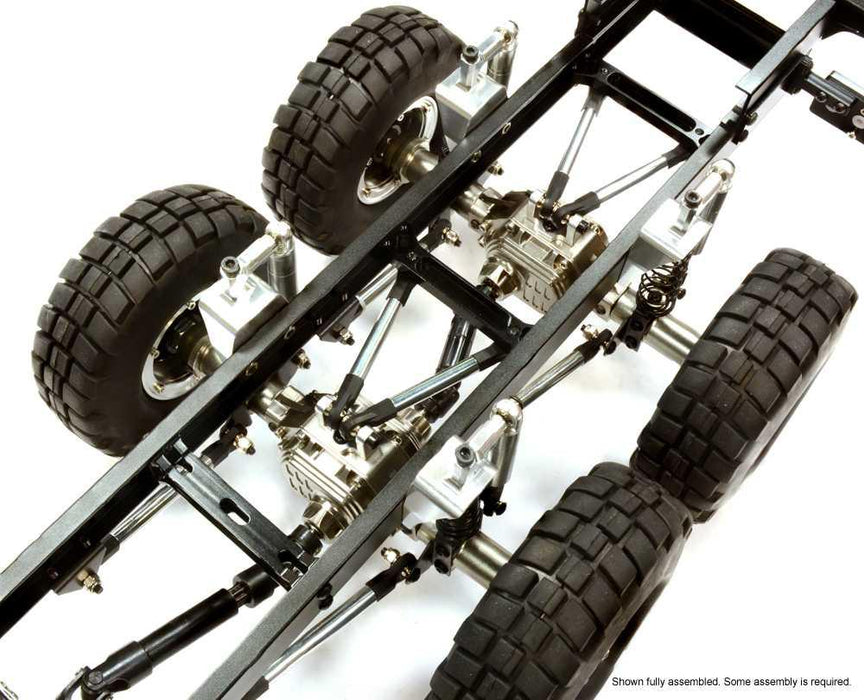

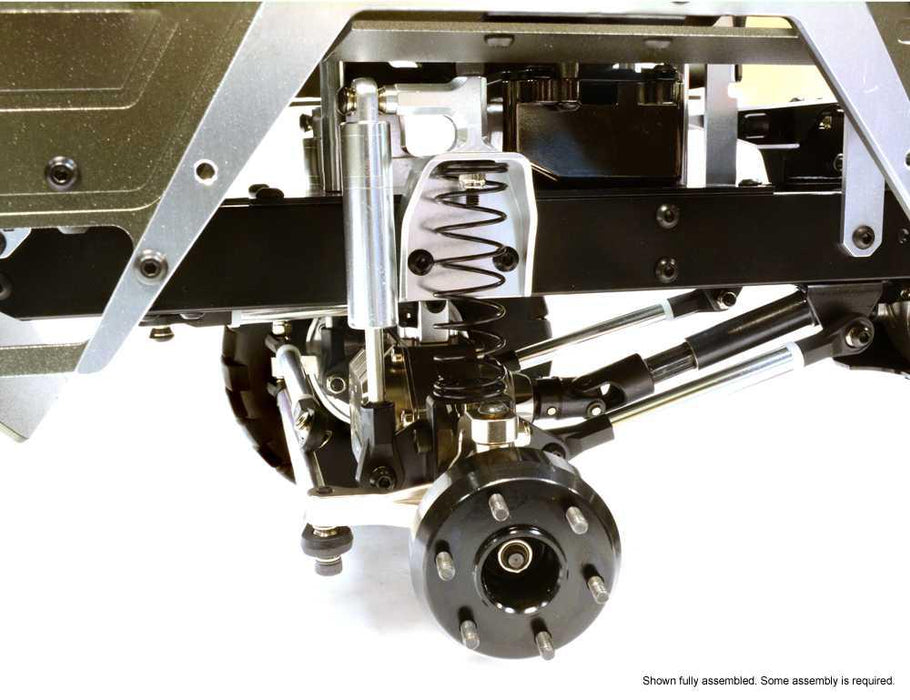

Anodized alloy multi-link suspension
Anodized alloy spring dampers
Separate mount suspension springs
STEERING
2-Wheel steering configuration
Anodized alloy steering posts
Anodized alloy steering linkage
MORE
Front mounted electronic winch (mounted to front bumper)
Front LED headlamps
Front LED spot lamps
Rear LED tail lamps
Molded battery tray
Velcro battery straps
SPECIFICATIONS
Overall length (w/winch): 28.5-inches (724mm)
Overall Width (w/mirrors): 10-inches (254mm)
Overall Height: 9.5-inches (241.3mm)
Wheelbase: 17.25-inches (438.1mm)
Weight (no electronics): 11.57 lbs. (5250g)
To get up and running you will need:
2-Channel Radio System
Medium/High Torque Servo
Heavy Duty Electronic Speed Controller
High Torque Brushed or Brushless Motor
2S LiPo or 7.2 NiMH Battery Pack
Compatible Charger
Batteries for the Transmitter
Lexan Paint for interior/fenders
C25853 1/10 7T-GL 6X6 High-Mobility Body Assembly reference sheet
Item# C25853GUN Barcode: 91789020876
