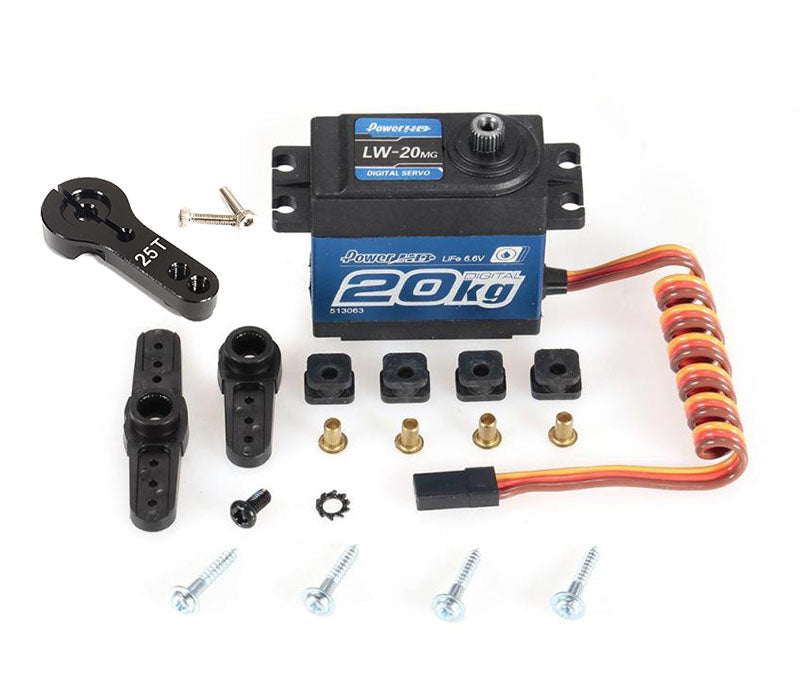

Power HD Digital High Torque 20kg Servo 0.16s - LW-20MG (Waterproof)

OVERVIEW
The Power HD LW-20MG is a high power servo that features an all-aluminum case, copper and aluminum gears, and a powerful coreless motor. The LW-20MG produces up to 20kg-cm of torque at a speed of 0.16s. This standard sized servo features a waterproof case, making it an excellent option for RC rock crawlers, monster trucks, and o=dirt bashers. The servo specs are as follows:

Torque @ 4.8V: 16.5 kg-cm (229.1 oz/in)
Torque @ 6.6V: 20.0 kg-cm (277.7 oz/in)
Speed: 0.18 sec @ 4.8V ”‚ 0.16 sec  @ 6.6V
Operating Voltage: 4.8 ~ 6.6 DC Volts
Weight: 60g (2.12 oz)
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Gear Type: Digital
Motor: Coreless
Operating Temperature: -20 „ƒ~60 „ƒ
Working frequency: 1520μs / 333hz
Size: 40.7x20.5x39.5mm (1.60x0.80x1.55 in)
Spline: 25-tooth

Note: When the digital steering gear is subject to resistance will be issued a continuous creak current sound, the greater the resistance sound the more loud, this is a normal phenomenon. Not for use underwater in constant submerged conditions.

Item# C30386 Barcode: 91789039232
