SKYRC SAM-020 Angle Gauge

OVERVIEW
Surface angle adjustment for an RC aircraft is the top priority, including the maximum value of the rudder, mixing control surface value of relative angle, and differential angle value of the aileron. Mechanical measuring is difficult and inaccurate to do for most - but thanks to the SkyRC Angle Gauge there is a solution!

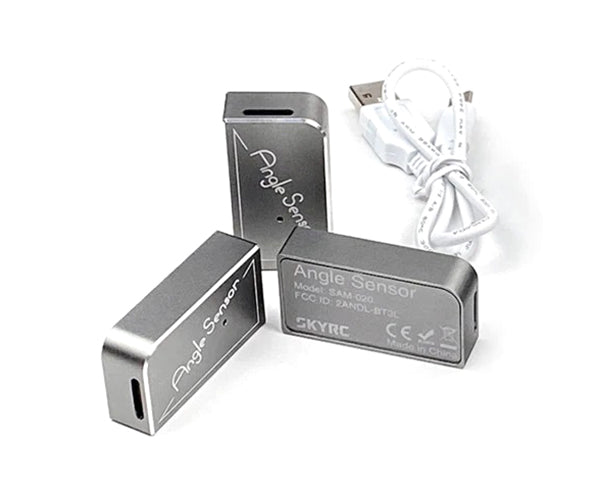

The SkyRC Angle Gauge consists of three small sensing modules, featuring CNC machined cases that are both dust-proof and have high impact resistance. The modules use Bluetooth 5.0 to wirelessly relay their measurement angles to the SkyRC "RC Gears" app (requires iOS 9.0+ or Android 8.0+), allowing for real-time measuring data with visual gauges on your phone or tablet to aid in setup, adjustment, and fine-tuning.

No external power source is needed thanks to the modules' built in 3.7V Lithium batteries that are easy to recharge via the built-in USB-C ports. The Angle Gauge is accurate to 2-degrees with a travel accuracy of 0.1mm. For high accuracy measurements, the SkyRC Angle Gauge is the way to go!

SPECIFICATIONS
Size: 48.1 x 25.6 x12.6mm
Weight: 25g
Working Voltage: 3.4-4.2V
Working Current: ＜10mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Low-voltage Protection
Measuring Accuracy: ±2°
Travel Accuracy: ±0.1mm
Working Temperature: 0 „ƒ-50 „ƒ
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10 „ƒ-50 „ƒ
Storage Humidity: 1%-75% (No Condensation)
The "RC Gears" app requires iOS 9.0 or above or Android 8.0 or above

Item# SK-500040-01 Barcode: 91789046624
