SkyRC CTG-016 Digital Camber Gauge for 1/8
OVERVIEW

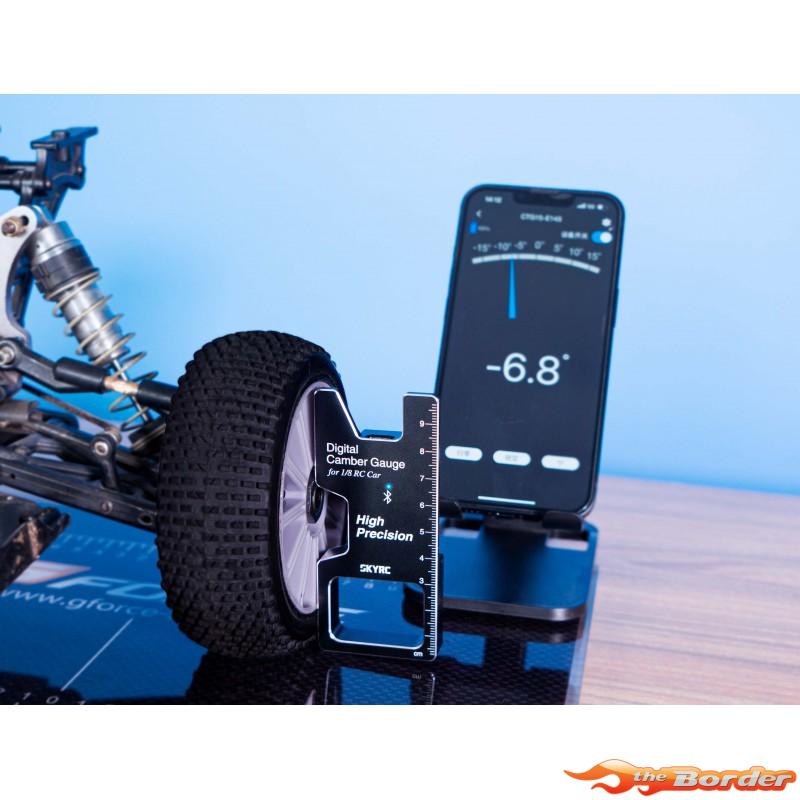

When it comes to RC racing, so many adjustments can contribute to the handling and performance of the vehicle. Adjusting Camber and Toe are vital adjustments to affect how your touring car performs on the straights and the turns. Now there is a highly accurate way to make these adjustments by leveraging technology with the SkyRC Digital Camber Gauge!

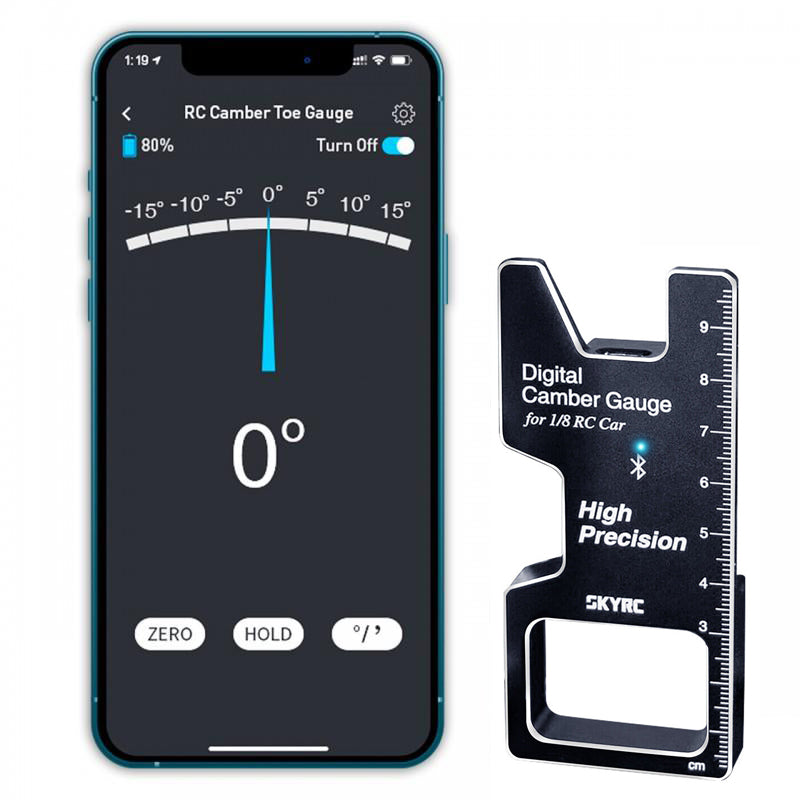

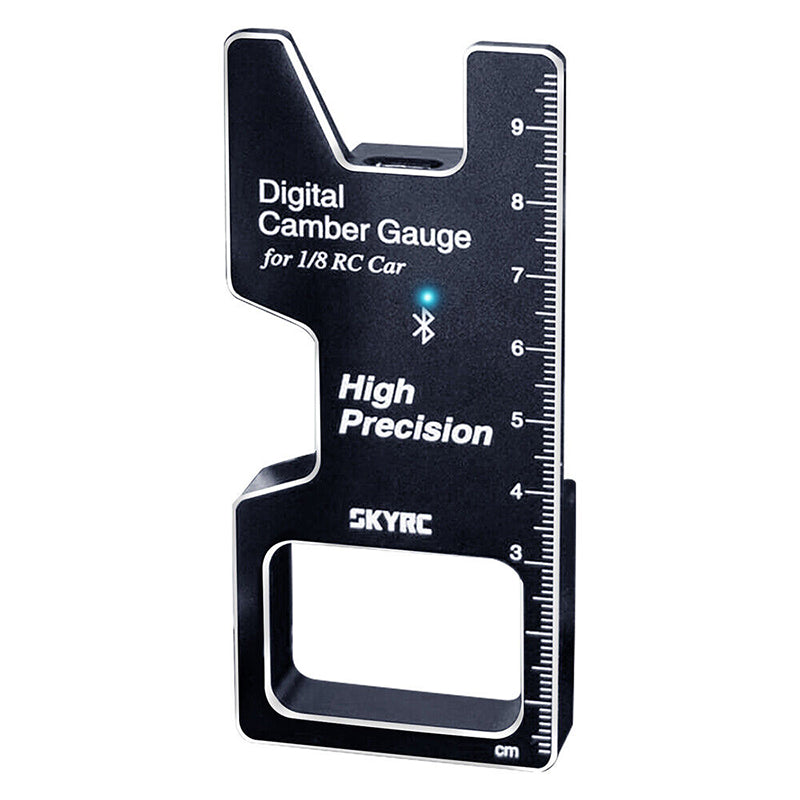

The SkyRC Digital Camber Gauge features precision-made aluminum alloy measurement plates with an anodized black finish and machined accents. The plates use Bluetooth 5.0 to relay the camber and toe measurement angles to the SkyRC "RC Gears" app (requires iOS 9.0+ or Android 8.0+) wirelessly, allowing for real-time measuring data with visual gauges on your phone or tablet to aid in setup, adjustment, and fine-tuning.
No external power source is needed thanks to the modules' built in 3.7V Lithium batteries that are easy to recharge via the built-in USB-C ports. The Digital Camber Gauge is available in 1/10 (SK-500042-01) and 1/8 (SK-500044-01) sizes, and also features a ride height ruler along the side plate. Both versions are accurate to 0.2-degrees.
SPECIFICATIONS
Size (1/10 version / 1/8 version): 45 x 12 x 80mm / 45 x 12 x 100mm
Weight (1/10 version / 1/8 version): 53g / 58g
Input Voltage: 5V
Input Current: 200-300mA
Interface: Type C
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Working Voltage: 3.4-4.2V
Working Current: <10mA
Low-voltage Protection
Measuring Range: ±17.5°
Measuring Accuracy: ±0.2°
Working Temperature: 0 „ƒ-50 „ƒ
Working Humidity: 5%-90% (None-condensation)
Storage Temperature: -10 „ƒ-50 „ƒ
Storage Humidity: 1%-75% (None-condensation)
The "RC Gears" app requires iOS 9.0 or above or Android 8.0 or above.
Item# SK-500044-01 Barcode: 91789046627
